aniq kichkina cnc lazerni kesish mashinasi, ko'zoynak uchun mini cnc lazer kesgich

aniq kichkina cnc lazerni kesish mashinasi, ko'zoynak uchun mini cnc lazer kesgich

Mahsulot tafsilotlari


Sertifikatlash: ISO9001: 2008
To'lov va etkazib berish shartlari:
Minimal buyurtma miqdori: 1 dona
Narxi: muzokaralar
Paket tafsilotlari: yog'och quti
Yetkazib berish muddati: 7-15 kun
Ta'minot qobiliyati: oyiga 2000 dona

Mahsulotning batafsil tavsifi


Mahsulot nomi:Fiber lazerni kesish mashinasiLazer kuchi:500w / 800w
Ish maydoni:500 * 500 mmMaksimal harakatlanish tezligi:60m / min
Joylashtirish aniqligi:± 0.01-0.03Powe ta'minoti:3 × 380V ± 10% 220V ± 10%
Paket:Yog'och qutiKafolat:1 yil

Mahsulot tavsifi


Nozik lazerni kesish mashinasi RISE LASER tomonidan ishlab chiqilgan va ishlab chiqarilgan. Yupqa qatlamli metallni qo'llash uchun etakchi lazer texnologiyasi bilan qabul qilingan. Mashina marmar va Cypcut lazerni kesish tizimi bilan birlashtirilgan. Integratsiyalashgan dizayni, ikki tomonlama gantry chiziqli motorli haydash tizimi, do'stona interfeys va uzoq muddatli barqaror ishlash.

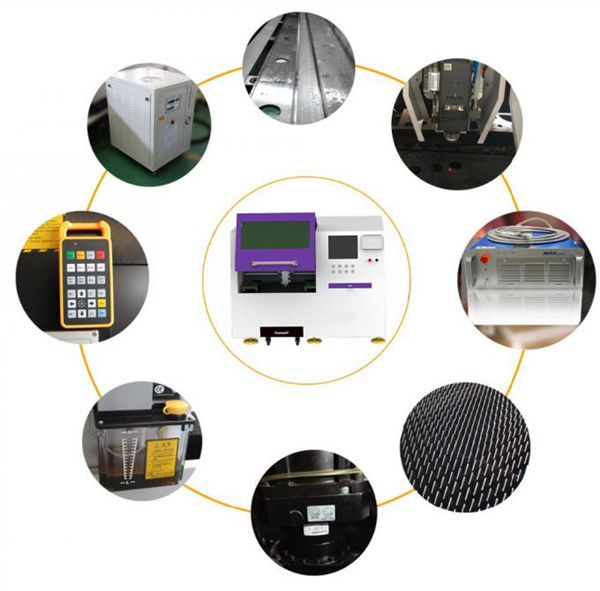

Main Features of Fiber Laser Cutting Machine


1. Spare parts:Servo motor from France, reduction gear and guide rail,etc are imported with original packaging.
2. Accuracy:Its speed and accuracy are guaranteed by using gear grinding with high precision,imported guide rail and laser cutting head under strict assembly.
3. Cutting:The laser cutting head which is imported with original packaging coordinates with spare parts which have high speed and precision to bring superb cutting quality.
4. The laser generator can be made in China or imported according to request from customers.Both two types can be maintained freely.

Mahsulotning ustunligi


1. Widely used in glasses, electronics, appliances and other precision machinery,hardware, microelectronics industry.
2.600 ° heat treatment and 24 hours with the furnace cooling, 8 meters gantry milling finishing, precision welding protection of carbon dioxide, to ensure the normal use for 20 years without deformation.
3. Rail installation with precision collimator test, the accuracy is less than 0.01mm.
4. Taiwan grinding screw drive.
5. High precision, speed, cutting surface smooth.
6. Configure Yaskawa servo system inertia in driving high accuracy.
7. Fully enclosed protective Cover.

Texnik parametr


Processing format( L × W) 500mm * 500mm
Lazer300W / 500W /800W/ 1000W/1500W (optional)
Dimensions1700 * 1190 * 1850mm
Cutting material thickness0.1-2mm (depending on material)
Repeat positioning accuracy± 0.01mm / m
Maximum speed40m / min
Maksimal tezlashuv0.5G
Mashinaning og'irligi800kg
Machine Operating temperature0 ℃ -40 ℃
Etkazishgrinding precision screw drive
IsmHigh precision 800W fiber laser cutting machine mini cnc laser cutter

Mahsulotni qo'llash


Qo'llash materiallari: Fiber lazerli kesish uskunalari zanglamaydigan po'latdan yasalgan qoplama, yumshoq po'lat plitalar, uglerod po'lat plitalari, qotishma po'lat plitalar, bahor po'lat plitalari, temir plitalar, galvanizli temir, galvanizli varaq, alyuminiy plastinka, mis qatlamlar, guruch qoplamalari , Bronza plastinka, oltin plitalar, kumush plitalar, titan plitalar, metall plitalar, metall plitalar, quvurlar va quvurlar va hk.
Qo'llash sohalari: tolali lazerni kesish dastgohlari Billboard, reklama, belgilar, yozuvlar, metall harflar, diodli xatlar, oshxona anjomlari, reklama xatlar, lavha metallga ishlov berish, metall buyumlar va ehtiyot qismlar, temir buyumlar, shassilar, tokchalar va shkaflarni qayta ishlashda keng qo'llaniladi. Metall buyumlar, metall buyumlar, asansör panellarini kesish, uskuna, avtoulov qismlari, ko'zoynak ramkasi, elektron qismlar, choyshablar va boshqalar.

Cutting parameter


Quvvat (Vt)MateriallarQalinligi (mm)Kesish tezligi (m / min)Gaz
800Zanglamaydigan po'lat18-9N2
25-6N2
31.8-2N2
41.2-1.3N2
800Karbonli po'lat18-10O2
24-5O2
32.8-3O2
41.4-1.8O2
51.2-1.5O2
60.9-1.1O2
80.6-0.7O2
