er-xotin foydalanish cnc metall lazer to'sar, avtomatik tolali lazer cnc mashinasi

er-xotin foydalanish cnc metall lazer to'sar, avtomatik tolali lazer cnc mashinasi

Mahsulot tafsilotlari

To'lov va etkazib berish shartlari:
Minimal buyurtma miqdori: 1
Narxi: kelishilgan
Paket tafsilotlari: yog'och paket
Yetkazib berish muddati: 15 - 30 ish kuni
To'lov shartlari: T / T
Ta'minot qobiliyati: oyiga 1000 dona

Mahsulotning batafsil tavsifi

Mahsulot nomi:Plitalar va naychalar tolali lazerni kesish mashinasiLazer turi:Fiber lazer
Lazer kuchi:500w/800w/1000w/2000w/4000wIsh hajmi:3000 * 1500mm
Kafolat:12 oySotishdan keyingi xizmat:Chet elda muhandislar xizmati
Vazni:3000 kgBoshqarish dasturi:Cypcut
CNC yoki yo'q:HAQo'llaniladigan materiallar:Metall materiallar

Mahsulot tavsifi

Ikki marotaba ishlatiladigan bitta mashina metall naychani va metall plastinkani bir marotaba kesib tashlashi mumkin
RL3015 laser tube cutting is specifically designed for manufacturers who care about high-quality products and tube cutting. Fully protective cover is able to keep the operators out of the damage of laser beam. Easy usage, maintenance and service have been achieved by the high-tech of fiber lasers. Rack & Pinion, Guide Linear and Auto motor have assured our high acceleration. All components, from globally recognized brands, are able to add more value to your company. We have been always striving to serve quality, performance and efficiency to our clients.

Asosiy xususiyatlari

Compact design facilitating a wide variety of applications.
CNC with laser control function.
Resonator with reflective sensors.
Simple program for pieces and cutting plans with automatically adapted feed speed and power output for each piece, using CNC.
Highly dynamic equipment.
Rigidity: high strength transfer due to stability of construction.
Durability: enclosed drivers.
Accessibility: spare parts service

Texnik parametrlar

Lazer manbai: Maxfotonik tolalar lazer manbai
Fiber laser power : 500W, 800W, 1000W, 1500W, 2000W, 3000W 4000W (Optional)
Ish hajmi: 3000 * 1500mm
X va Y joylashishni aniqlash aniqligi: + -0,05 mm
Etkazib berish rejimi: Germaniya Atlanta yuqori aniqlikdagi tishli va ikki qavatli haydovchi raf tolali lazerni kesish dastgohi bilan tortma

Kesish maydoni
3000mm / 6000mm
Lazer kuchi
500 - 3 kVt tolalar
Dastur interfeysi
O'z ichiga w / PC boshqaruv minora
Moddiy imkoniyat
va qora qorong'u akrillardan iborat
Dvigatel turi
Ball vida drayveridagi servo motorlar
Lazer / kompyuter ulanishi
USB ulanishi
Quvvatlantirish manbai
380V uch fazali
Kafolat
2 yil (ehtiyot qismlar va lazer quvvatini o'z ichiga oladi)
Sinf
4-sinf lazer
Quvur va naychaning diametri
Φ20-Φ200mm
Quvur va naychaning uzunligi
6000mm
X o'qining yo'nalishi
300 mm
Y o'qining yo'nalishi
6500mm
V o'qining aylanish burchagi
n * 360 ° CHEKMAYDI
X / Y o'qining joylashuv aniqligi
± 0,02 mm
V o'qining maksimal aylanish tezligi
80RPM
X o'qining maksimal harakatlanish tezligi
50m / min
X o'qining maksimal tezlashtirilgan tezligi
1.2G
Y o'qining maksimal tezlashtirilgan tezligi
0,6G
Chak shakli
Ikkita pnevmatik chuck
Maksimal yuklanmoqda
400 kg
Hajmi
10000 * 1800 * 2300mm
Mashinaning og'irligi
5000kg
Dvigatel konfiguratsiyasi
X: 850W / Y: 3000W / W: 3000W

Mashina tafsilotlari

1. Germaniya Precitec / Shveytsariya Raytool lazerli bosh, avtomatik fokus balandligi izdoshi ixtiyoriy.
2. Maxphotonics fiber laser generator, 500W, 800W, 1KW, 2KW, 3KW, 4KW Optional
3. Yaponiya Yaskawa servo motorli tizim.
4. Tayvan HIWIN chiziqli qo'llanma temir yo'li.
5. Kiptrlarni boshqarish tizimi.
6. BEST Germaniya Atlanta er-xotin haydovchisining tok uzatmasi.
7. Germaniya Neugart reduktori. quyidagidan foydalanmoqda:
3. Xitoyning eng yaxshi ishlab chiqaruvchilari, Jinan G. Weike, eng yaxshi narx va sifat, CE & FDA & ISO sertifikatlariga ega
4. Elyafni kesish qalinligi 1mm, 1.5mm, 2mm, 3mm, 5mm, 6mm, 20mm gacha
5. RL3015 trubkali quvur tolasi lazerni kesish mashinasi, 1500 * 3000mm
6. 1000W zanglamaydigan po'latdan yasalgan kumush metall naychali CNC tolali lazerni kesish mashinasi narxi.

Fiber lazerni kesish mashinasining afzalligi

1. Zo'r yo'l sifati: kichikroq lazerli nuqta va yuqori ish samaradorligi, yuqori sifat.
2. Yuqori kesish tezligi: kesish tezligi bir xil quvvatdagi CO2 lazerli chiqib ketish mashinasidan 2-3 marta.
3. Barqaror ishlash: dunyoning eng yaxshi import tolasi lazerlarini qabul qilish, barqaror ishlash, asosiy qismlar 100,000 soatni tashkil qilishi mumkin;
4. Fotoelektrik konversiya uchun yuqori samaradorlik: CO2 lazerni kesish mashinasi bilan taqqoslang, tolali lazerni kesish mashinasi uch marta fotoelektrik konversiya samaradorligiga ega.
5. Arzon narx: energiya tejash va atrof-muhitni himoya qilish. Fotoelektrikni o'tkazish tezligi 25-30% gacha. Elektr energiyasini kam iste'mol qilish, bu an'anaviy CO2 lazerli chiqib ketish mashinasining atigi 20% -30% ni tashkil qiladi.
6. Kam texnik xizmat ko'rsatish: optik tolali liniyani uzatishning hojati yo'q, xizmat ko'rsatish narxini tejash;
7. Oson operatsiyalar: optik tolali uzatish, optik yo'lni sozlash yo'q.

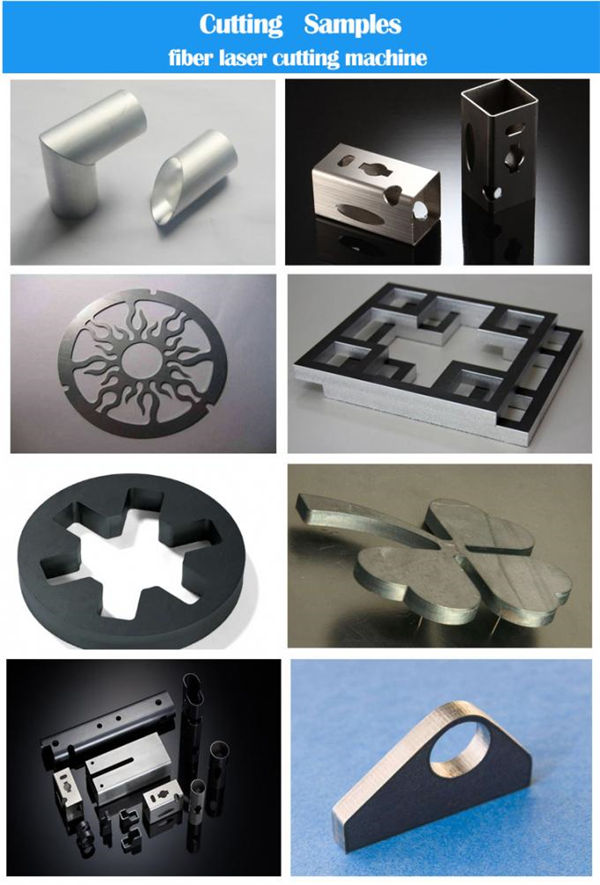

Mahsulotni qo'llash

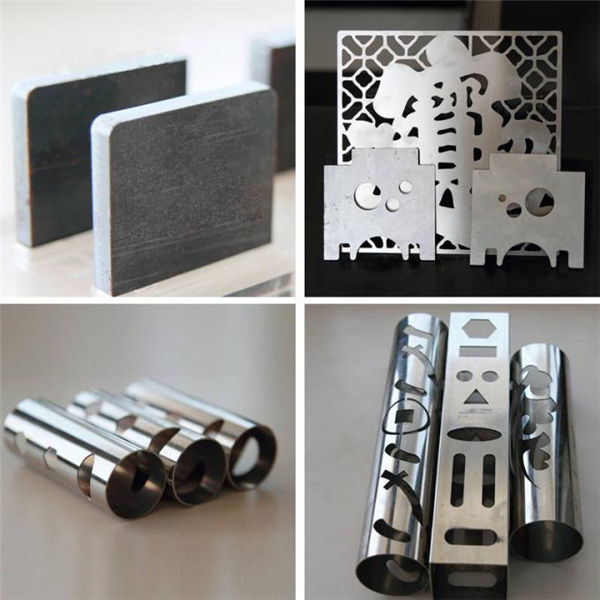

Ilova: U quvurni, kvadrat naychani va turli xil maxsus shakldagi quvurlarni kesishi mumkin.
Quvur uchun diametri: 20-200 mm
Kesish uzunligi: 6m / 4m va boshqalar
500 Vt tolali manba bilan kesish qalinligi: 3 mm zanglamaydigan po'lat, 6 mm karbonli po'lat, 2 mm mis, 2 mm alyuminiy va boshqalar, 2,5 mm galvanizli plastinka va boshqalar.
