high speed sheet metal cnc cutting machine stable z axis automatic tracking

yuqori tezlikda ishlaydigan metall cnc chiqib ketish mashinasi barqaror z o'qi avtomatik kuzatish

Mahsulot tafsilotlari

To'lov va etkazib berish shartlari:

Minimal buyurtma miqdori: 1

Narxi: kelishilgan

Paket tafsilotlari: yog'och paket

Yetkazib berish muddati: 15 ish kuni

To'lov shartlari: T / T

Ta'minot qobiliyati: oyiga 1000 dona

Mahsulotning batafsil tavsifi

Mahsulot nomi:	Plitalar va naychalar tolali lazerni kesish mashinasi	Lazer turi:	Fiber lazer
Lazer kuchi:	500w / 800w / 1000w	Ish hajmi:	3000 * 1500mm
Kafolat:	12 oy	Sotishdan keyingi xizmat:	Chet elda muhandislar xizmati
Vazni:	3000 kg	Paket:	Yog'och quti

Ikki marotaba ishlatiladigan bitta mashina metall naychani va metall plastinkani bir marotaba kesib tashlashi mumkin
In order to meet the increasingly complex needs of consumers, Rise Laser is targeted at market demand, independently developed RL3015 sheet and pipe integrated laser fiber cutting machine, one machine dual purpose, this machine solves double cutting needs by one time.

Ishlab chiqarish tavsifi

. 300w, 500w, 800w, 1000w, 1500w 3000w Maxphotonics fiber optic laser optional.
. Fiber Cutting aluminum, carbon steel, iron, stainless steel, silver, hardware, sheet metal processing, metal tube pipe materials ,etc..
. China Top manufactuers, Jinan G.Weike, best price and quality, with CE & FDA & ISO certificates.
. Fiber Cutting thickness 1mm, 1.5mm, 2mm, 3mm, 5mm, 6mm, up to 20mm.
. RL3015 Tube pipe fiber laser cutting machine, 1500*3000mm.
. Price for 1000W Stainless steel silver metal tube pipe CNC fiber laser cutting machine.

Stable Z axis automatic tracking function

The most advanced capacitor non-contact automatic tracking system, it can automatically adjust the best focal length to ensure the best cutting effect of the whole board to avoid the material is not smooth, the focal length of the material caused by the problem of scrapped.
Because the cutting head is equipped with non-contact sensing device, under the control of the system, can achieve a stable Z-axis floating function, directly eliminate the uneven sheet on the cutting quality, CNC laser cutting machine has a high cutting yield.

Mashina tanasi

Using gantry type mechanic structure , high precision ,good quality, stable performance.
Machine bed:The use of high-quality steel and pipe welded from the frame structure, the machine is annealed, the second aging treatment, large-scale milling machine precision processing, these design and processing means to ensure that the machine has excellent shock resistance, high rigidity and stability.
Waste recycling equipment:Equipped with trolley, clean up the blanking without lifting the table.

Transmission system

The use of bilateral rack gear transmission and imported linear guide, and the use of dual-drive servo motor drive system, effectively ensuring the laser cutting speed and accuracy.

Boshqarish tizimi

Professional kompyuter sanoatida foydalanish, grafik interfeys, ishlash oson, professional kesishni boshqarish dasturi turli xil grafika va matnlarni, real vaqtda ishlov berishni, CAD, CorelDraw va boshqa professional xaritalash dasturlarini bemalol loyihalashtirishi mumkin.
High-quality industrial computer control operation
High efficient, easy to operate CNC cutting system
Z axis automatic tracking function
CNC chiqib ketish nazorat qilish tizimi
CNC chiqib ketish nazorat qilish tizimi bu Windows XP Professional ishlab chiqishga asoslangan yuqori samarali boshqaruv kartasidan foydalanish, CNC boshqaruv tizimi bilan to'liq ta'minlangan, shuning uchun mashina va lazer manbai o'rtasida real vaqtda boshqarish va dasturiy ta'minotni yangilash yanada qulay va tezdir.

Texnik parametrlar

Lazer manbai: Maxfotonik tolalar lazer manbai
Optik tolali lazer kuchi: 500W, 800W, 1000W, 1500W, 2000W, 3000W (ixtiyoriy)
Ish hajmi: 3000 * 1500mm
X va Y joylashishni aniqlash aniqligi: + -0,05 mm
Etkazib berish rejimi: Germaniya Atlanta yuqori aniqlikdagi tishli va ikki qavatli haydovchi raf tolali lazerni kesish dastgohi bilan tortma

^{Lazer kuchi}	^{500w 750w 1000w 1500w 3000w tolalar ixtiyoriy}
^{Kesish maydoni}	^{1500mm * 3000mm}
^{Mashinaning butun hajmi}	^{1360 * 780 * 1100mm}
^{Oyma tezligi}	^{0 - 60,000mm / min}
^{Joylashuv aniqligini tiklash}	^{± 0,05 mm}
^{Ish kuchlanishi}	^{AC 110 - 220V ± 10%, 50 - 60Hz}
^{Yalpi quvvat}	^{<1000 Vt}
^{Ishlash harorati}	^{0 - 45 ° C}
^{Ish namligi}	^{5- 95%}
^{Minimal shakllantiruvchi belgi}	^{Inglizcha 1 x 1mm}
^{Grafik format qo'llab-quvvatlanadi}	^{BMP, PLT, DST, DXF va AI}
^{Haydash tizimi}	^{500w 800w 1000w 1500w 3000w tolalar ixtiyoriy}
^{Sovutish rejimi}	^{suvni sovutish va himoya qilish tizimi}
^{Yordamchi uskunalar}	^{Egzoz-fanatlar, havo chiqaradigan quvur}
^{Boshqarish dasturi}	^{Cypcut boshqarish tizimi}
^{Mos keladigan dastur}	^{CorelDraw AutoCAD Photoshop dasturi}
^{Sof og'irlik}	^{3000 kg (modellarga bog'liq)}

1.Germany Precitec / Shveytsariya Raytool lazerli boshi, avtomatik fokus balandligi izdoshi ixtiyoriy.
2.Maxfotonika tolali lazer generatori, 500W, 800W, 1KW, 2KW, 3KW, 4KW, 6KW, 8KW ixtiyoriy
3.Japan Yaskawa servo motorli tizim.
4.Tayvan HIWIN chiziqli qo'llanma temir yo'li.
5.Kiptrni boshqarish tizimi.
6.BEST Germaniya Atlanta er-xotin haydovchisining tokchali uzatmasi.
7.Germany Neugart reduktori. quyidagidan foydalanmoqda:
3. Xitoyning eng yaxshi ishlab chiqaruvchilari, Jinan G. Weike, eng yaxshi narx va sifat, CE & FDA & ISO sertifikatlariga ega
4. Elyafni kesish qalinligi 1mm, 1.5mm, 2mm, 3mm, 5mm, 6mm, 20mm gacha
5. RL3015 trubkali quvur tolasi lazerni kesish mashinasi, 1500 * 3000mm
6. 1000W zanglamaydigan po'latdan yasalgan kumush metall naychali CNC tolali lazerni kesish mashinasi narxi.

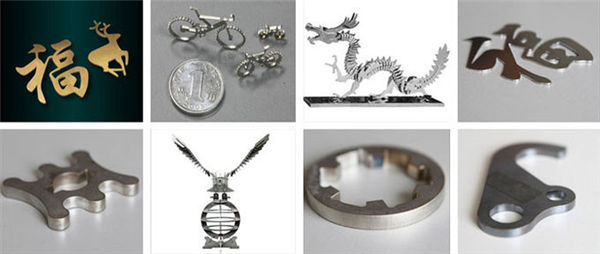

Ilova

1. Clean cut edges without burr for more efficient material utilization and reduced secondary operations.
2. Turli xil materiallarning qalinligi va birikmalarini bitta operatsiyada kesish
3. No material deformation due to contactless material processing.
4. Yuqori darajada boshqariladigan, takrorlanadigan va aniq ishlov berish. Etc.
Plitalar va quvurlarni integratsiyalashgan dizayni tufayli, RL3015 sanoat moslashuvchanligi juda yaxshilandi, shu jumladan neft va quvur materiallari, fitness uskunalari va boshqa quvur materiallari asosan mexanik ishlov berish, avtomobilsozlik, mashina shkafi va boshqa taxta materiallari asosan mexanik ishlov berish va hk.
