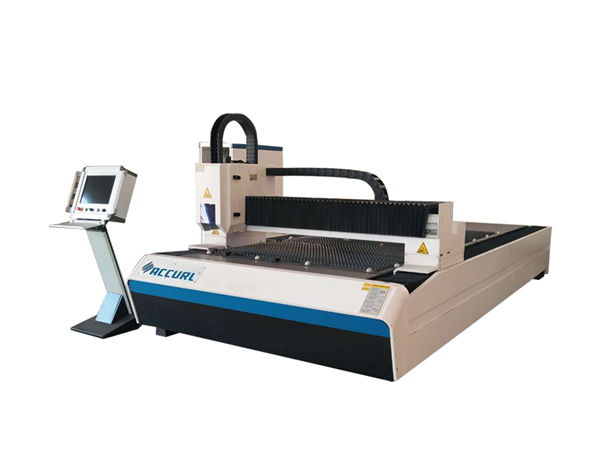

water cooling metal fiber laser cutting machine for 1 - 3mm metal cutting

Mahsulot tafsilotlari

Sertifikatlash: Idoralar / FDA

To'lov va etkazib berish shartlari:

Minimal buyurtma miqdori: 1 SET

Narxi: AQSh dollari

Packaging Details: Fumigation-free plywood wooden box with iron binding belt

Yetkazib berish muddati: 15-30 ish kuni

To'lov shartlari: T / T, L / C, Western Union

Ta'minot qobiliyati: yiliga 2000 dona

Mahsulotning batafsil tavsifi

Lazer turi:	Fiber lazer	Kesish maydoni:	1500 * 3000mm
Sovutish rejimi:	Suvni sovutish	Ilova:	Metallni kesish
Ish kuchlanishi:	380V / 50Hz	Qalinligi kesish:	3-4 Mm (Carbon Steel)
Lazer kuchi:	300W	Boshqarish dasturi:	Cypcut

Main Introduction

1. The fiber optic laser cutter adopts world famous Germany fiber laser technology and USA imported laser cutting head & dynamic focus system, and fiber optic laser cutter can cut and punch different kind of metal materials with high precision and high speed.
2. Since laser is transmitted by fiber, it’s free maintenance, and also doesn't need to adjust the laser optical path at all. The fiber optic laser cutter greatly reduces the machines' fault rate and prolongs the working life.
3. The fiber cutter has large cutting area from 1.5M to 3M, and the fiber cutter can also meet the demands of various kinds of metal processing.

Fiber laser cutting machine Features

Lazer kuchi	300 Watt
Lazer manbai	Jahonga mashhur Germaniya tolali lazer texnologiyasi
Lazer turi	Fiber lazer
XYZ ish maydoni	1500 * 3000 * 150 (mm)
Lazer to'lqin uzunligi	1070-1080nm
Maks. Qalinligini kesish	300w (1-3mm Carbon Steel)
Maks. Chiqib ketish tezligi	0-20 metr / min (materiallarga qadar)
Minimal chiziq kengligi	≤0.1mm
Joylashuv aniqligi	≤ ± 0,05 mm
Maks. harakatlanish tezligi	100m / min
Qayta joylashishni aniqlash	± 0,02 mm
Formatni qo'llab-quvvatlash	PLT, DXF, BMP, AI
Quvvat talabi	380V / 50Hz
Sovutish usuli	Suvni sovutish
Ish stoli maksimal yuklamoq	1000KGS
Etkazish usuli	Ball vintlarini uzatish
Stol bilan boshqariladigan tizim	Yaponiyadan import qilingan Panasonic Servo Motor va haydash tizimi
Fokus usuli	Fokusni kuzatish va avtomatik sozlash
Boshqarish usuli	Oflayn xarakatni boshqarish
Boshqarish dasturi	Cypcut Professional Laser Cutting Software
Sinf	4-sinf lazer

Fiber laser cutting machine Features

1. Excellent beam quality: Smaller focus diameter and high work efficiency.
2. Fast cutting speed: Cutting speed of this fiber cutter is more than 20m/min
3. Stable running condition: adopting the top world imported fiber lasers which has very stable performance, and key parts of the fiber optic laser cutter can reach 100,000 hours' lifetime;
4. High efficiency for photoelectric conversion: compare with Co2 laser cutting machine, fiber optic laser cutter has 3 times photoelectric conversion efficiency as much as it.
5. Low cost & low maintenance: saving energy and protecting environment. Photoelectric conversion rate is up to 25-30%. Electric power consumption is only about 20%-30% of the traditional Co2 laser cutting machine. Fiber cable transmission doesn't need to reflect lens so as to save maintenance cost;
6. Easy operations: fiber line transmission leads to no adjustment of optical path;
7. Super flexible optical effects: the design is compact and is also easy to reach all manufacturing requirements.

Applied materials of 300w Fiber Laser Cutting Machine
Elyaf to'sar asosan uglerod po'latidan, yumshoq po'latdan, zanglamaydigan po'latdan, kremniy po'latdan, alyuminiy qotishmasidan, titan qotishmasidan, galvanizli po'latdan yasalgan po'latdan yasalgan po'latdan yasalgan taxta, alyuminiy-rux plastinkasi, mis va ko'plab boshqa turdagi metall buyumlar uchun ishlatiladi. Bu yuqori aniqlikdagi kesish uchun ishlatilishi mumkin bo'lgan cnc lazer to'sarlardan foydalanish. Bundan tashqari, uni tolali kesish mashinasi, optik tolali lazerni kesish moslamasi, metall uchun lazer to'sar, tolali to'sar, uglerod po'latni kesish, cnc lazer kesgichlar deb atash mumkin.

Applied Industry of 300w Fiber Laser Cutting Machine
Metall uchun ushbu lazer to'sar plastinka ishlov berish, aviatsiya, kosmik yorug'lik, elektronika, elektr jihozlari, metro qismlari, avtomobil, mashinalar, nozik qismlar, kemalar, metallurgiya uskunalari, asansör, maishiy texnika, sovg'alar va qo'l san'atlari, asboblarni qayta ishlash, bezatish, va hokazolarda qo'llaniladi. reklama, metallni xorijiy qayta ishlash turli xil qayta ishlash sanoatlari.
