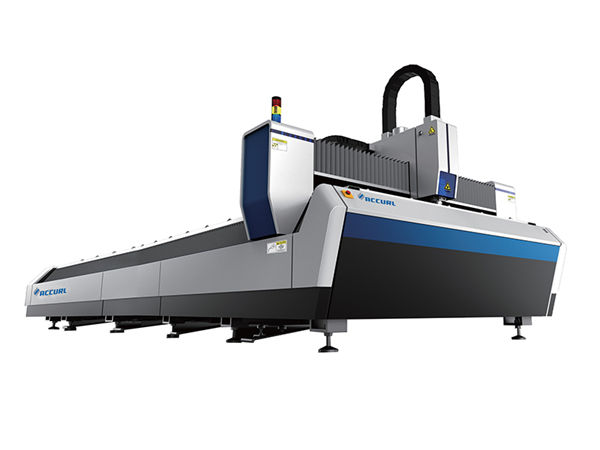

precious laser cutting and engraving machine , advertising fiber cutting machine

Mahsulot tafsilotlari

Sertifikatlash: ISO9001: 2008

To'lov va etkazib berish shartlari:

Minimal buyurtma miqdori: 1 dona

Narxi: muzokaralar

Paket tafsilotlari: yog'och quti

Yetkazib berish muddati: 7-15 kun

Ta'minot qobiliyati: oyiga 2000 dona

Mahsulotning batafsil tavsifi

Mahsulot nomi:	Precious Fiber Laser Cutter For Advertising Industry Application 5050	Lazer kuchi:	300w dan 800w gacha
Ish maydoni:	500 * 500 mm	Maksimal harakatlanish tezligi:	60m / min
Joylashtirish aniqligi:	± 0.01-0.03	Powe ta'minoti:	3 × 380V ± 10% 220V ± 10%
Paket:	Yog'och quti	Kafolat:	1 yil

Precious metal precision laser cutting machine adopts Herolaser original double precious metal recycle system. Imported fiber laser source, high-profile cutting head, high precision rotary servo motors, with professional laser cutting control software and automatic following focalizing system, it can fully automatic adjust the focus position following the heights of bent cutting work piece to ensure the cutting quality.
Automatic feeding system and bangle,rings rotary cutting system can be optional.

Model Features

Original recycle system- full sealed double protection, cavity inner cut, recycle rate is up to 99.95%
High cutting precision, speed fast, narrow cutting seam, little heat-affected area, cutting surface smooth, no burrs.
10 years service life of fiber laser source.

Konfiguratsiya

^#	^Mahsulot	^{Texnik xususiyatlari}	^Tovar	^Eslatma
¹	^{Lazer manbai}	^800W	^Maxfotonika
²	^{chiziqli vosita}
³	^{Optik panjara}	^{piksellar soni 0,5 mkm}	^Ispaniya
⁴	^Haydovchi		^servotronix
⁵	^{Z o'qi Vintli modullar guruhi}
⁶	^{Lazerni kesish boshi}	^BT230
⁷	^{Nozik chiziqli qo'llanma rayi}		^Hiwin
⁸	^Marmar	^{18001350200}	^Shandong
⁹	^{Organ qoplami}	^Standart
¹⁰	^{Ishlov berish materiallari}	^Standart		^{aviatsiya alyuminiy qotishmasi}

Parametr

^{Ish hajmi}		^{500 × 500 (mm)}
^{Maks. Tezlashtirish}		^1,2g
^{X AXIS}	^{Maks. Harakat tezligi}	^{60m / min}
	^Yo'l	^{500 mm}
	^{Joylashtirish aniqligi}	^{± 0,01 mm}
	^{Takrorlashning aniqligi}	^{± 0,004 mm}
^{Y AXIS}	^{Maks. Harakat tezligi}	^{60m / min}
	^Yo'l	^{500 mm}
	^{Joylashtirish aniqligi}	^{± 0,01 mm}
	^{Takrorlashning aniqligi}	^{± 0,004 mm}
^{Z AXIS}	^Yo'l	^{100 mm}

Ish holati

¹	^{Ish harorati}	^{-10 ℃ ～ 45 ℃}
²	^{Nisbiy havoning namligi}	^{＜ 90% kondensator yo'q}
³	^{Atrof muhit}	^{Yaxshi shamollatish, tebranish yo'q}
⁴	^{Quvvatlantirish manbai}	^{3 × 380V ± 10% 220V ± 10%}
⁵	^{Quvvat chastotasi}	^50Hz

Boshqarish tizimi

Professional kompyuter sanoatida foydalanish, grafik interfeys, ishlash oson, professional kesishni boshqarish dasturi turli xil grafika va matnlarni, real vaqtda ishlov berishni, CAD, CorelDraw va boshqa professional xaritalash dasturlarini bemalol loyihalashtirishi mumkin.
. Yuqori sifatli sanoat kompyuterini boshqarish operatsiyasi
. Yuqori samarali, oson ishlaydigan CNC chiqib ketish tizimi
. Z o'qi avtomatik kuzatuv funktsiyasi
